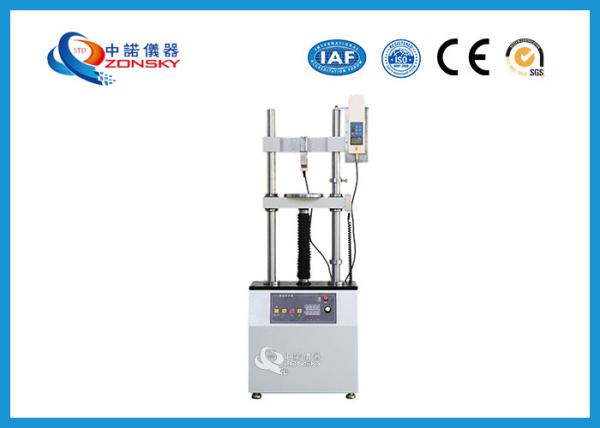

    Double Pole Tensile Strength Testing Equipment , Electric Vertical Tensile Tester

    Double Pole Electric Vertical Testing Equipment / Test Machine


    1. Application


    This test machine is equipped with different push pull meters. It is used to measure the pulling force of riveting terminals and electronic wires. The transmission mechanism adopts noise free gear and runs at constant speed.


    2. Performance Parameters


    (1) Range of tensile force: 2kg, 5kg, 10kg, 20kg and 30kg.


    (2) Maximum stroke: horizontal 100 mm, vertical 250 mm (without fixture).


    (3) Speed: 50 ~ 300 mm/Min adjustable.


    (4) With the left and right (horizontal), up and down (vertical) mobile functions.


    (5) Motor: Taiwan AC 60W


    (6) Power: AC 220V 6A


    (7) Force display mode: pointer push pull meter


    (8) Body size: 360mm (long) * 170mm (wide) * 550mm (high)


    (9) Weight: 30kg
